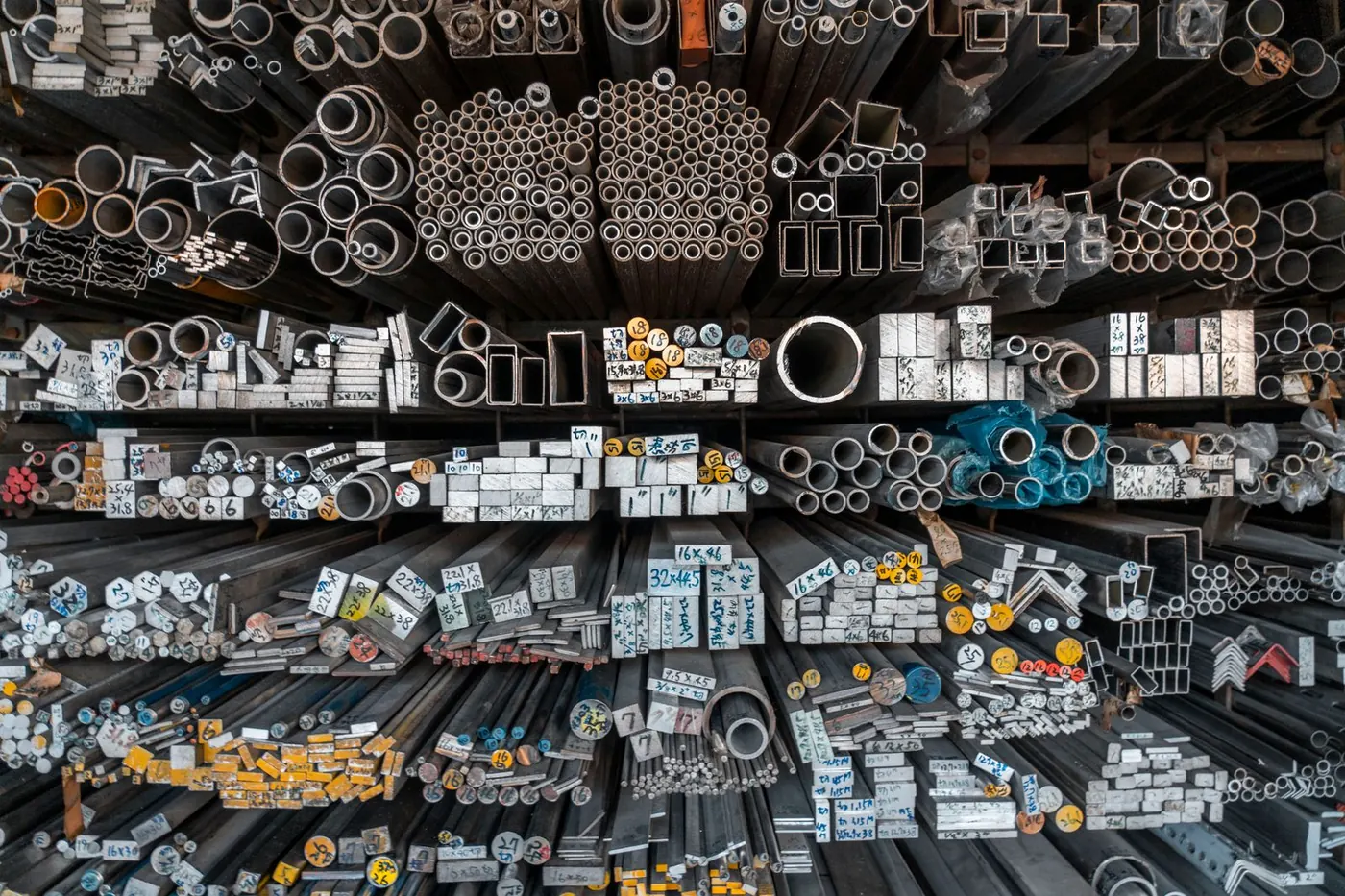

Extruded aluminium profiles, tubes and bars
Standard sections from stock dies, or custom profiles developed from your drawing. Alloys 6060 · 6063 · 6063A · 6005 · 6005A · 6061 · 6082 · 6101 · 6351 · 6463 in T4 / T5 / T6.
Windows, doors, partitions & façades
Sections for sliding and casement windows, doors, office partitions, curtain wall, structural glazing and railing systems. Typically 6063-T5/T6 for a clean anodised or powder-coated finish.
- Sliding & casement window series
- Door frames, shutters and thresholds
- Partition and glazing beads
- Curtain wall mullions and transoms
- Handrail, louver and cladding sections
Profiles, tubes and bars — standard and customProfiles to your drawing
Heat sinks, machine frames, conveyor and automation sections, bus-body and transport profiles, electrical enclosures and structural members — extruded in 6061, 6082, 6005A or 6351 where strength matters, or 6101 for conductivity.
- I-beams, T-bars, channels and angles
- Machine-frame and automation profiles
- Heat-sink and enclosure sections
- Transport and bus-body profiles
- Conductor bars and EC-grade sections
Module frames & mounting structures
Anodised 6063-T6 module frames and 6005A/6063 mounting rails, clamps and posts for rooftop and ground-mount installations. Frames are supplied cut to length and mitred where required.
- PV module frames (anodised)
- Mounting rails and purlins
- Mid and end clamps, splices
- Ground-mount posts and bracing
Standard & application profiles
All dimensions customisable. Custom cross-sections built to your drawing on request.
AngleEqual / unequal · L
ChannelU / C-section
T-SectionGlazing & structural
H-SectionBeam / column
Square TubeBox section
Rectangular TubeBox section
Round TubeHollow
Round RodSolid
Hexagon BarFasteners / shafts
Flat BarTrims & supports
Heat-SinkElectronics thermal
Mounting RailSolar structures
Z-SectionCladding / cascading
Slotted ProfileAutomation framing
LED ProfileLighting
Module FrameSolar PVSection range (PDF)Company profile (PDF)Technical catalogue (PDF)
Tubes, pipes, bars, angles & channels
Maximum sizes currently extrudable on our 1,100 MT press. Wall thickness on tubes and hollows is set to suit the section.
Square tube
Up to 100 × 100 mm
Round tube
Up to Ø 110 × 6 mm
Rectangular tube
Up to 150 × 50 mm
Flat bar
Up to 175 × 6 mm
Square bar
Up to 50 × 50 mm
Round bar
Up to Ø 52 mm
Angles and channels are available in equal and unequal legs within the 180 mm circumscribing circle.
Mill, anodised, powder coated & wood finish
Mill finish
As-extruded, for fabrication or further processing by the customer.
Anodised
Natural, bronze and black; coating thickness checked every batch to IS 1868, sealing to IS 5523.
Powder coated
Architectural polyester powders; thickness and adhesion tested every batch to AAMA 2603/2604 and ASTM D3359.
Wood finish
Sublimation wood-grain finishes on powder-coated base for doors, windows and interiors.
Anodising and powder coating add to the finished dimension and are allowed for at the die stage where the customer specifies the finish.
Section outside this envelope?
It can often still be produced. Send the drawing and our tool room will come back with feasibility, die cost and lead time.
